LOW PRESSURE MISTING SYSTEM
Low Pressure misting system also known as Low Pressure Fogging system combines ultimate performance with aesthetically pleasing appearance to complement any outdoor living space as a patio misting system. For efficient cooling of outdoor areas and maximum effectiveness, a low pressure misting system, commercial patio misting systems is the ideal choice. These misting kits use our industry leading maximum 150 psi pump. Along with specially designed ultrafine misting nozzles, it can reduce the temperature up to 6-10 degrees.
Misting Sytstem Features
MISTING SYSTEM – GENERAL INSTRUCTIONS
- Best suitable for dust suppression, Terrace gardens and Indoor / Outdoor cooling like Portico.
- Always keep the pump below the tank level to increase the suction and achieve maximum pressure.
- Misting is possible only at high pressure
- Liquids used should be free from debris and sediments as it affects the performance of the mist nozzles.
- Adjust the pressure to the mist nozzles by opening the liquid return line accordingly. Certain quantity of
water should be sent in the return line for optimal performance. - Shutting the liquid return line to the tank completely affects the performance of pump and hence causes
heating and affects the overall performance of the system. - Use enough Teflon tapes where ever necessary in Joints and threads.
- Advised to deploy a plumber during initial setup.
- 16 meters of PU hose supplied with the setup.
- Install the nozzles on the sides of the subject at an approximate angle of 45 degree from sides for maximum
performance. - Use plastic tag to tie the nozzles/hose to the poles or structure.
- Clean and maintain the system and nozzles periodically.
Product Specifications
Low Pressure booster Diaphram pump
Mist Spray Nozzle Types – Fine Atomizing nozzle of orifice size of 0.3 mm (Standard). Low pressure mist nozzles are available from 0.3 mm orifice to 0.6 mm orifice.
End Connection: 1/4″ , 1/2″ , 3/4″ & 1″BSP BSPT or NPT or Push fit connection (6 mm or 8 mm or 12 mm).
Flow Rate : 5 LPM TO 10 LPM
Pressure : 10.0 kg/cm or specified
Application : Nozzle types commonly used in low-pressure agricultural sprayers include flat-fan, flood, raindrop, hollow-cone, fullcone, and others. Special features, or subtypes such as extended range, are available for misting systems.

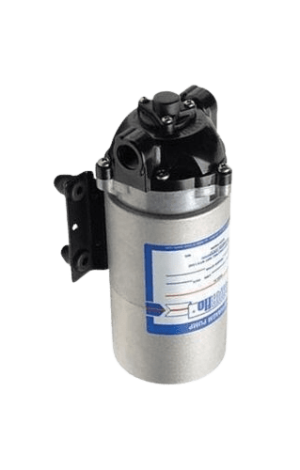

Low Pressure Misting System – Diaphragm pump
Applications
Dust Suppression Misting System
Warehouse Misting System
Greenhouse misting system
Patio Misting Systems
Hydroponic Misting System
Mosquito Control Misting System
Odor Suppression Misting System
Textile Mill Misting System
Wastewater Evaporation Misting System
Mist cooling system in dairy processing units
Mist Cooling System In Pharmaceutical Industries
Misting Cooling System for Mushroom Cultivation farms
